EP刮枪培训资料.ppt

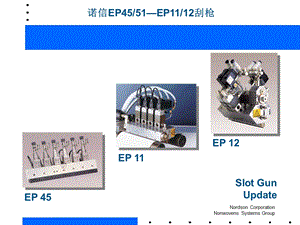

诺信EP45/51EP11/12刮枪,EP 45,EP 12,EP 11,Slot GunUpdate,EP 45 刮枪,The Classic:EP 45,For intermittent applications at lower line speedsBall&seat“control moduleLow priceGood performance withposition fine tuninghigh web tensionPossible patternsmin.pattern length9 msecmin.gap size9 msec,EP45 Gun,EP45刮枪原理示意图,EP 45刮枪结构,EP45刮枪活塞/顶针,EP45刮枪角度调整,EP45刮枪角度调整,EP45/51 Gun Module组装,EP45/51 更换刮片,EP51/EP52 Gun,EP51 刮枪分解图,EP11 反抽式高速刮枪,EP11刮枪,EP11 反抽式高速刮枪,EP11 Components刮枪组件,1,2,3,4,5,6,7,8,9,1.Gun Body 枪体2.Filterblock with Cartridge过滤器3.Control Module EP-10 控制组件4.Slot Nozzle 刮头5.Solenoid 电磁阀6.Electric Junction Box 电气盒7.Gun Cordset 电线插头8.Glue Inlet 胶入口9.Compressed Air 压缩空气,EP10 Control Module喷胶活塞组件,OPEN 开启,CLOSED关闭,Snuff Back 反抽技术,EP10 module,EP 11,EP11喷枪活塞组件,开,关,EP10 module组装,容易安装,Ideal Position正确位置,Possible With EP11可以安装的位置,rectangle position to the webshort distance between rollershigh web tension材料高张力,Good results even with low web tensions or web routing that are not ideal材料低张力,EP10-高速组件,EP10-Flange-on module,Features&Benefits(cont.):More compact overall size compared to standard EP10 module,reduces outer gun dimensions significantly,Cut-Off Comparison,EP 45,EP 11,Installation,EP 45,EP 11,刮枪调整,EP 12,Shortest Gaps:EP 12,Outstanding cut-off qualityClean gaps between patternsEasy installationPossible patternsmin.pattern length6 msecmin.gap size 1 msec,EP 12高速刮枪(反应时间1-2MS),EP 12,Features,Two snuff-back modules for each zoneRound slot nozzleFilter,Summary,09/1999 Nordson Engineering GmbH,T.Brieger,01.09.99,EP1112450.PPT,谢谢!,
